New PC Build 2022

Having built my PC a few years ago, I was thinking about upgrading it, but with chip prices being what they are, and graphics cards costing more than a new car, I thought I would wait. Then a friend of mine happen to have an AMD 5800X that he was willing to give me a deal on… After years of having the custom case, while it was nice, it was HUGE and made it difficult to setup a desk in a tiny New York apartment. I used this opportunity to shrink a bit, and update some of the components. I say some, because some of them (like the graphics card) were going to stay to save cost.

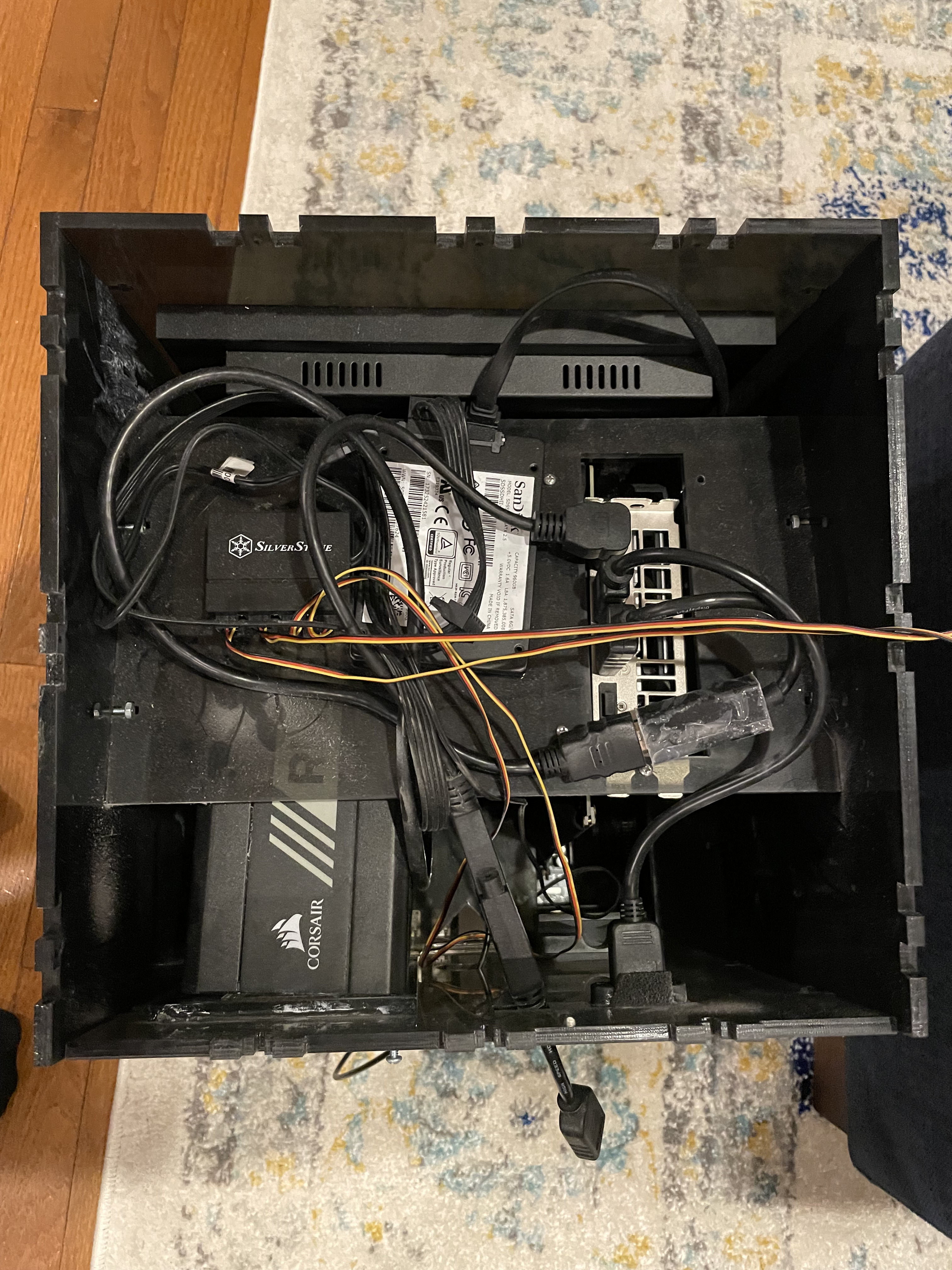

Old case being taken apart, its a bit of a mess

At this point, this post is mostly a standard PC build, with a few hiccups along the way. Looking on the Small Form Factor PC subreddit, and https://caseend.com/ (a website for small pc cases), I settled on the ZZAW C3. It is relatively small, supports Micro-ATX, full size graphics cards, and all-in-one water coolers in a ~22 liter case. I always try to get Micro-ATX over Mini-ITX for my desktop because you get more PCI slots; as well as 4 DIMMs for RAM instead of 2. I also wanted to try one of these all-in-one water coolers, since I never had and thought I could get good results (and a quiet case).

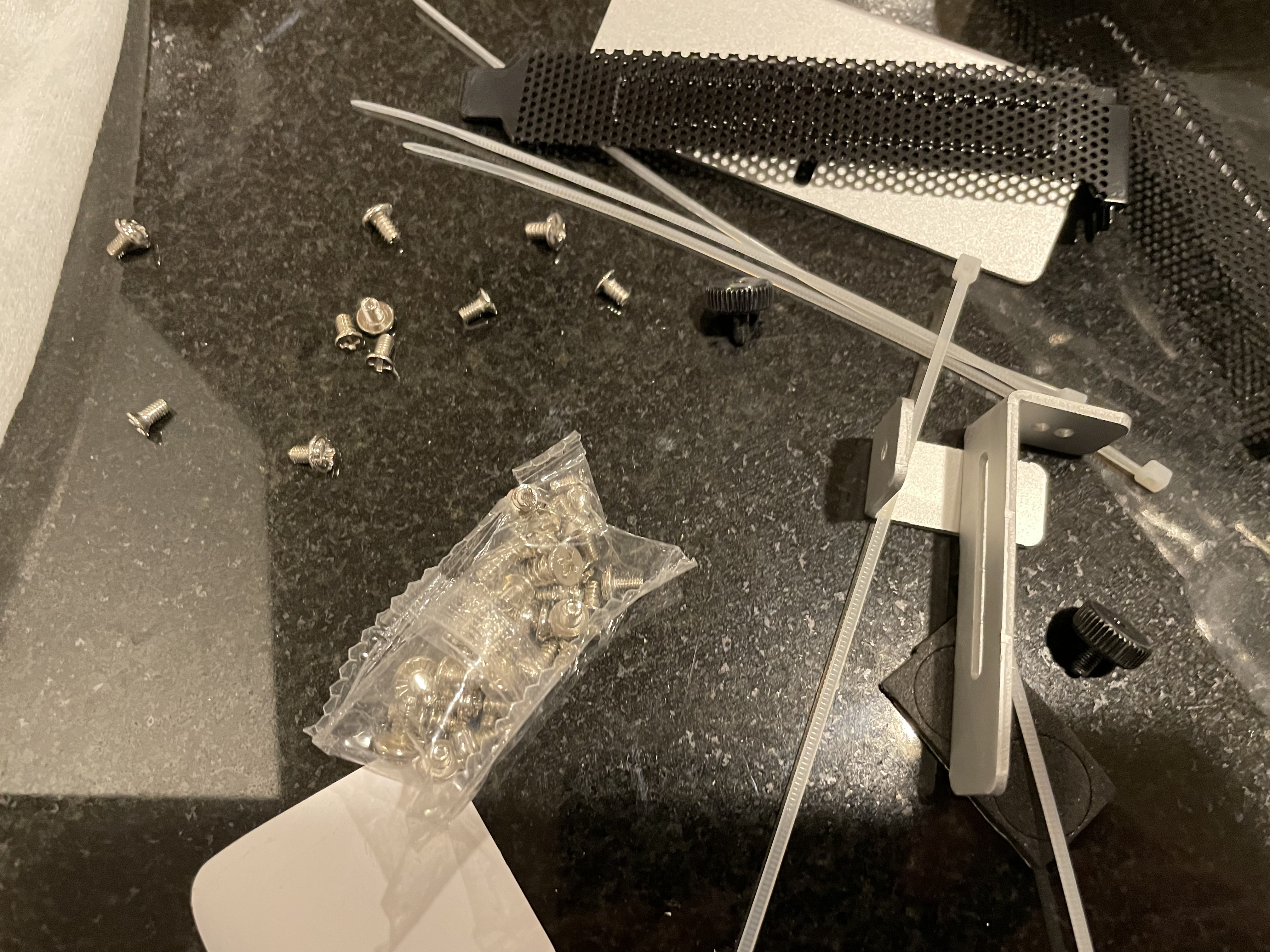

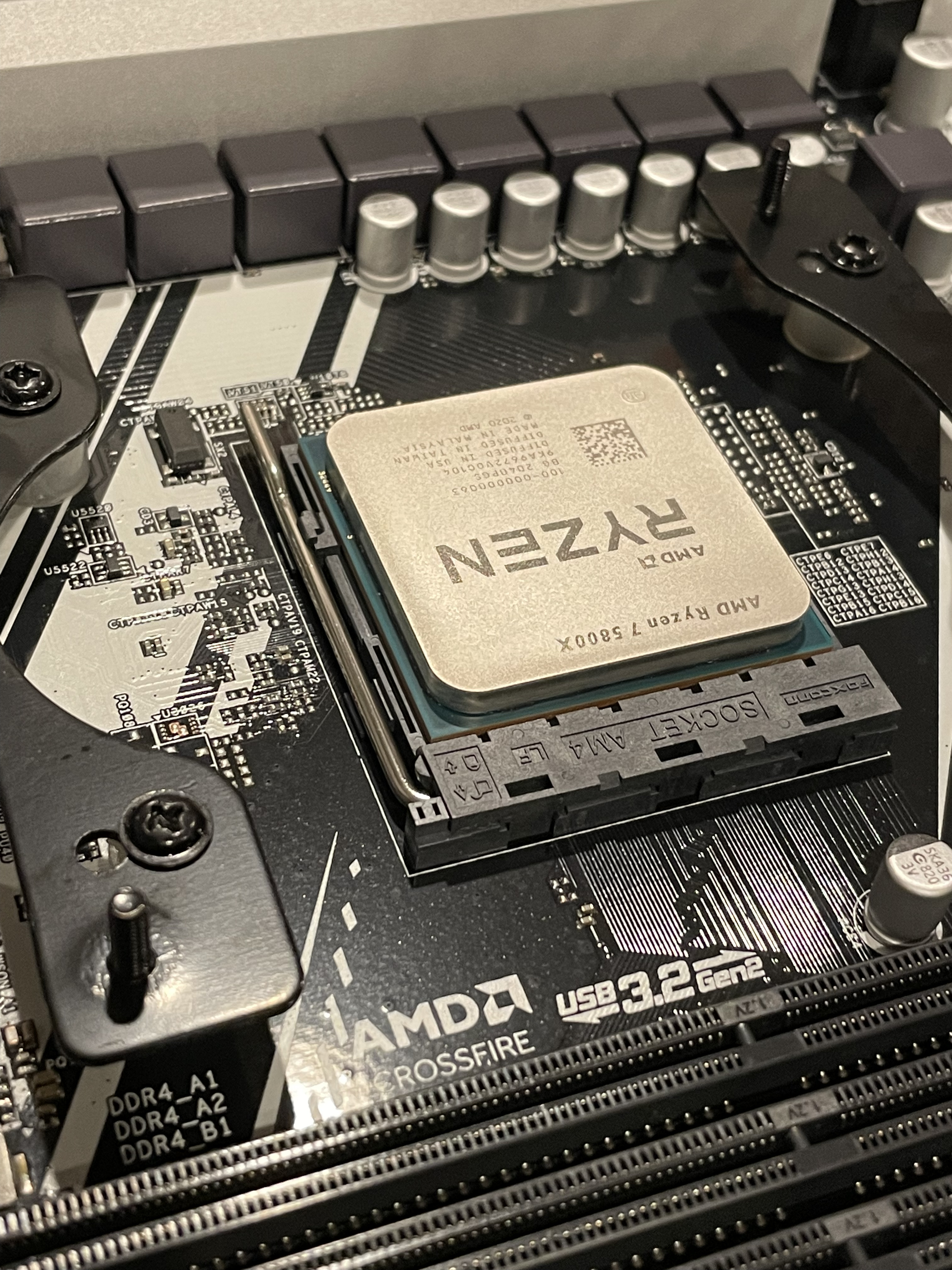

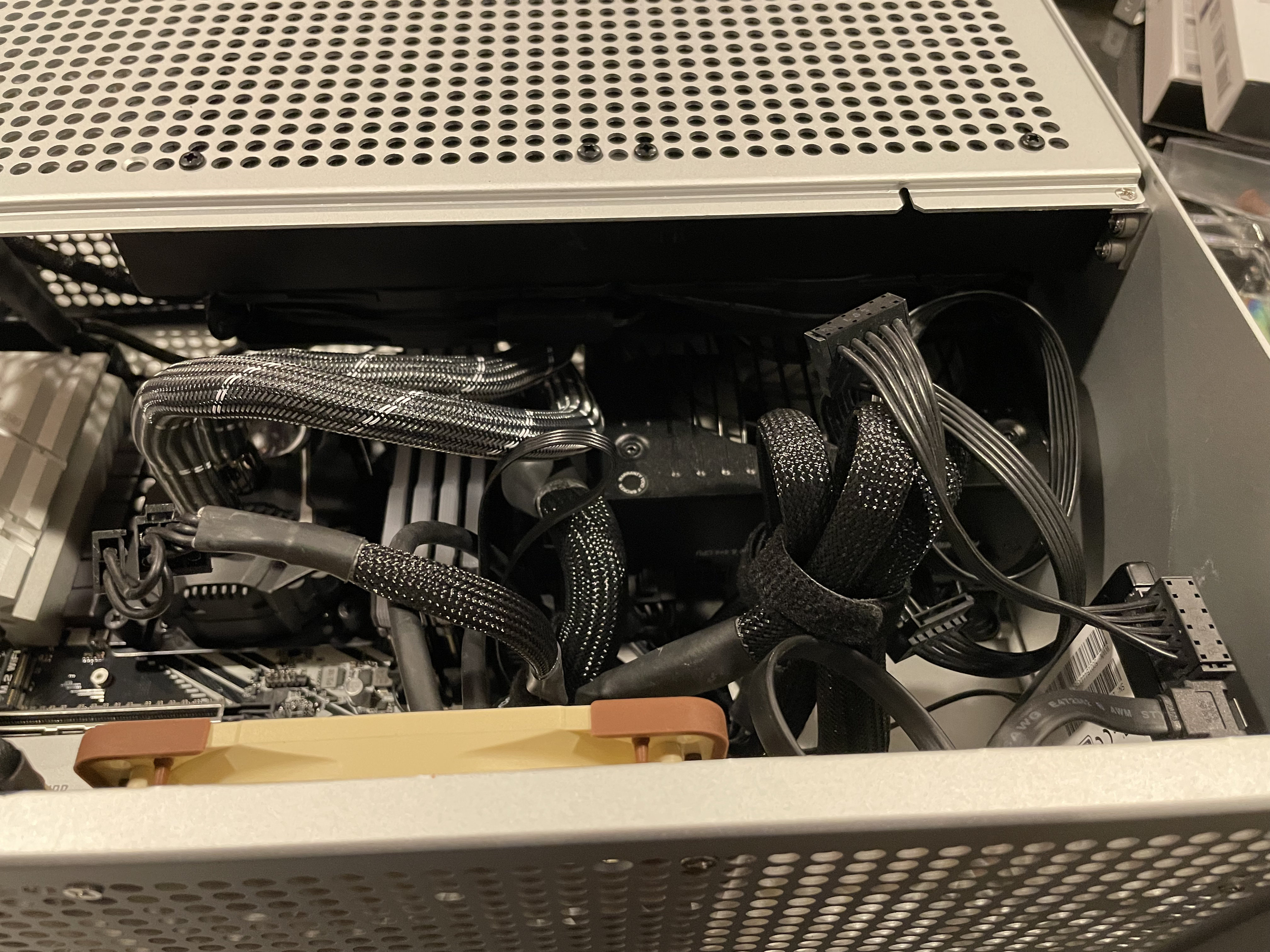

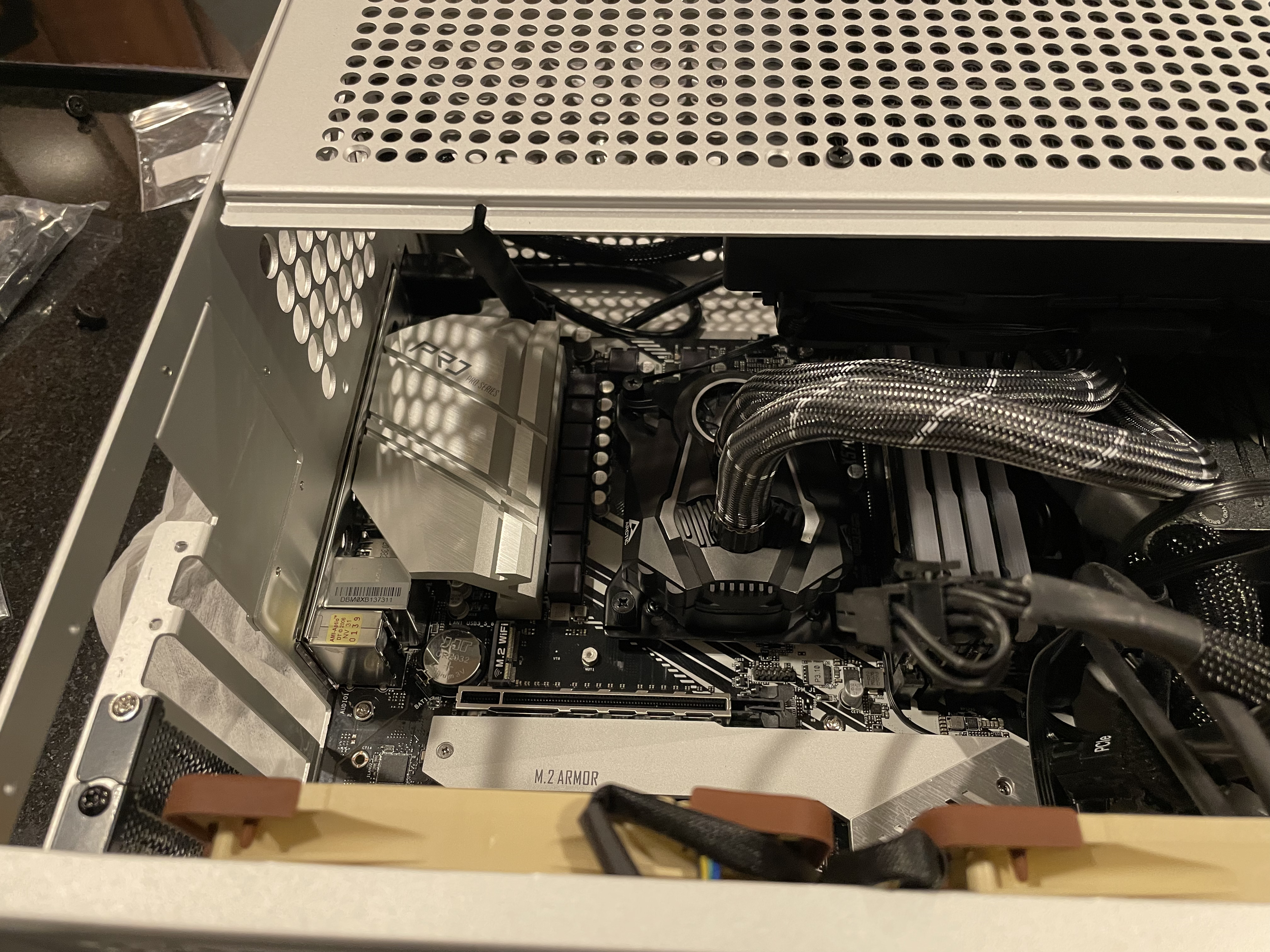

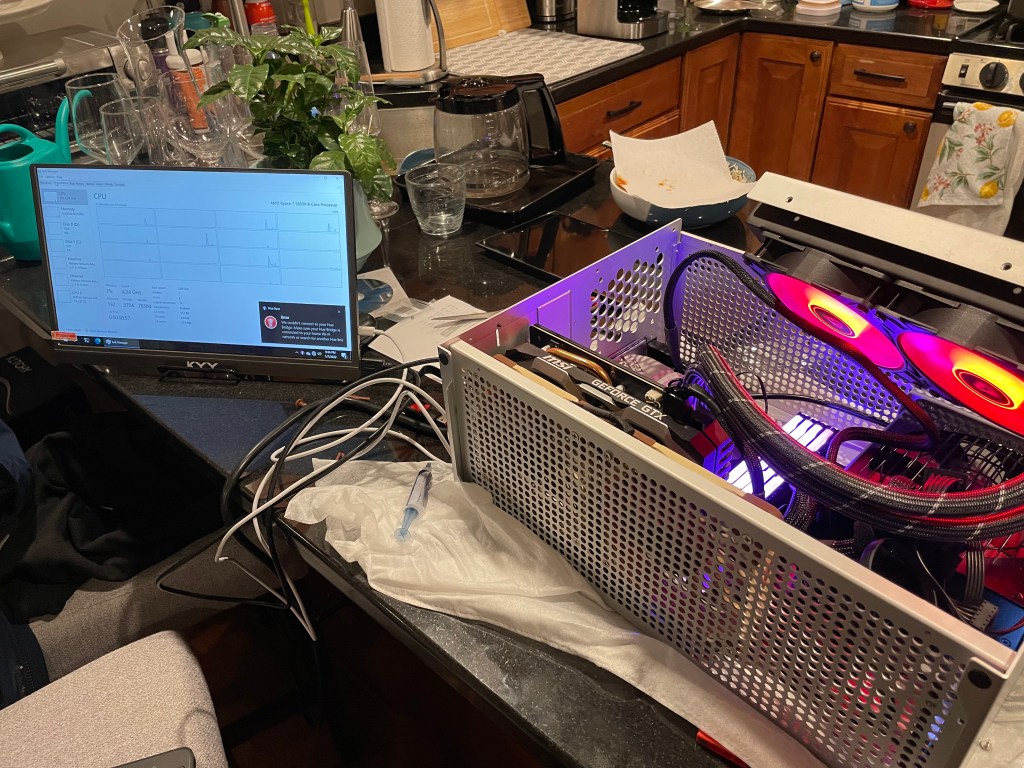

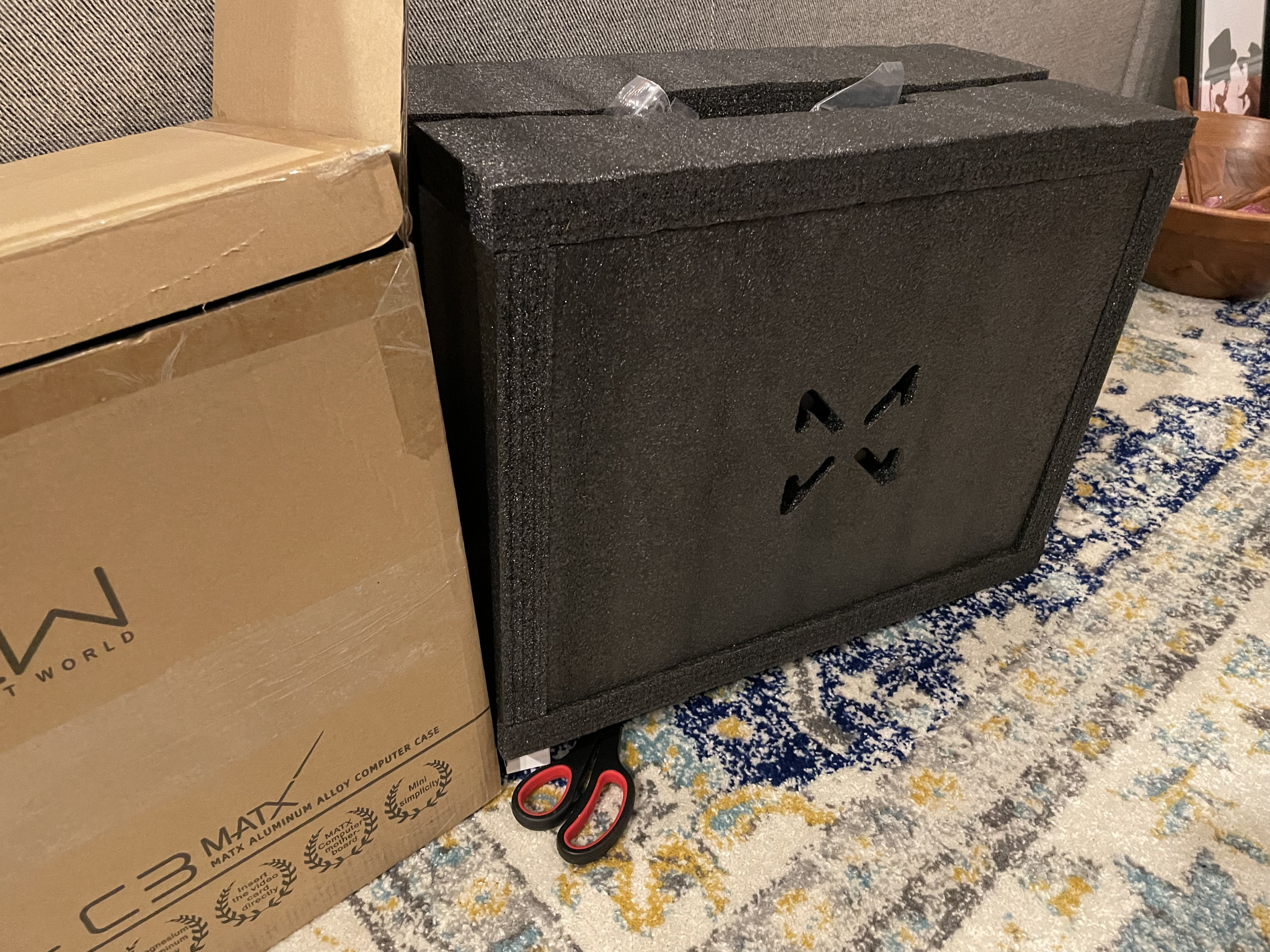

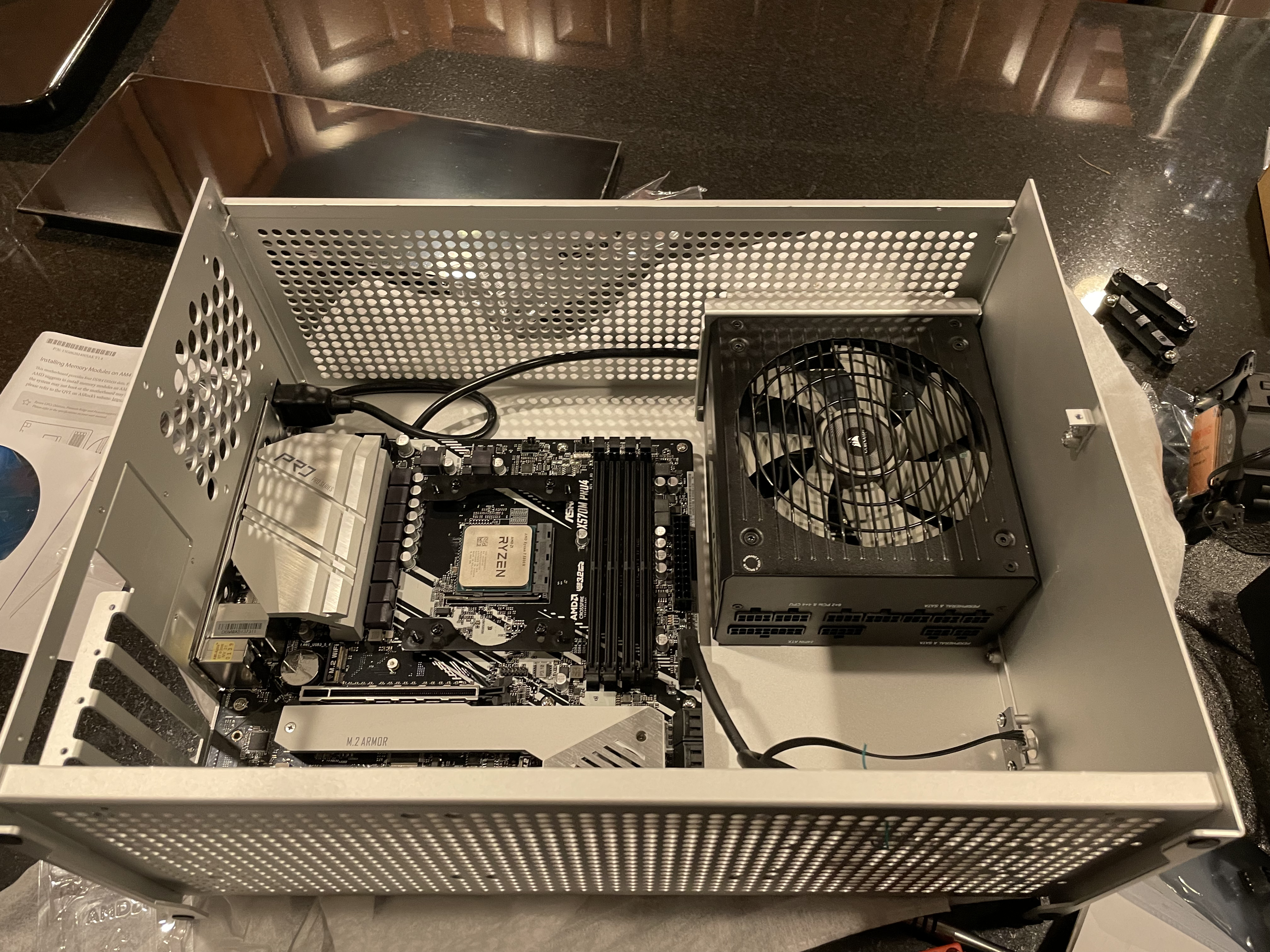

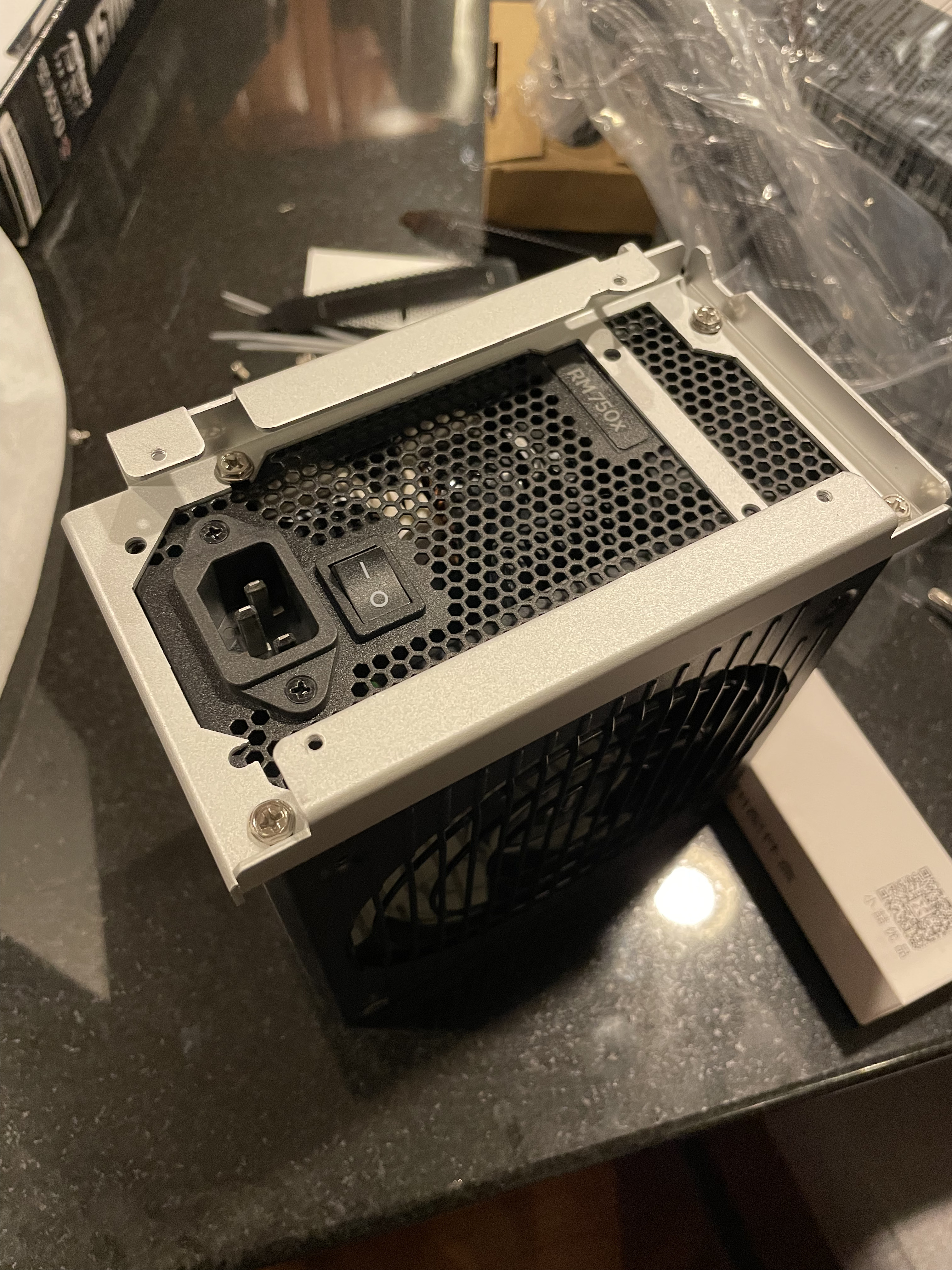

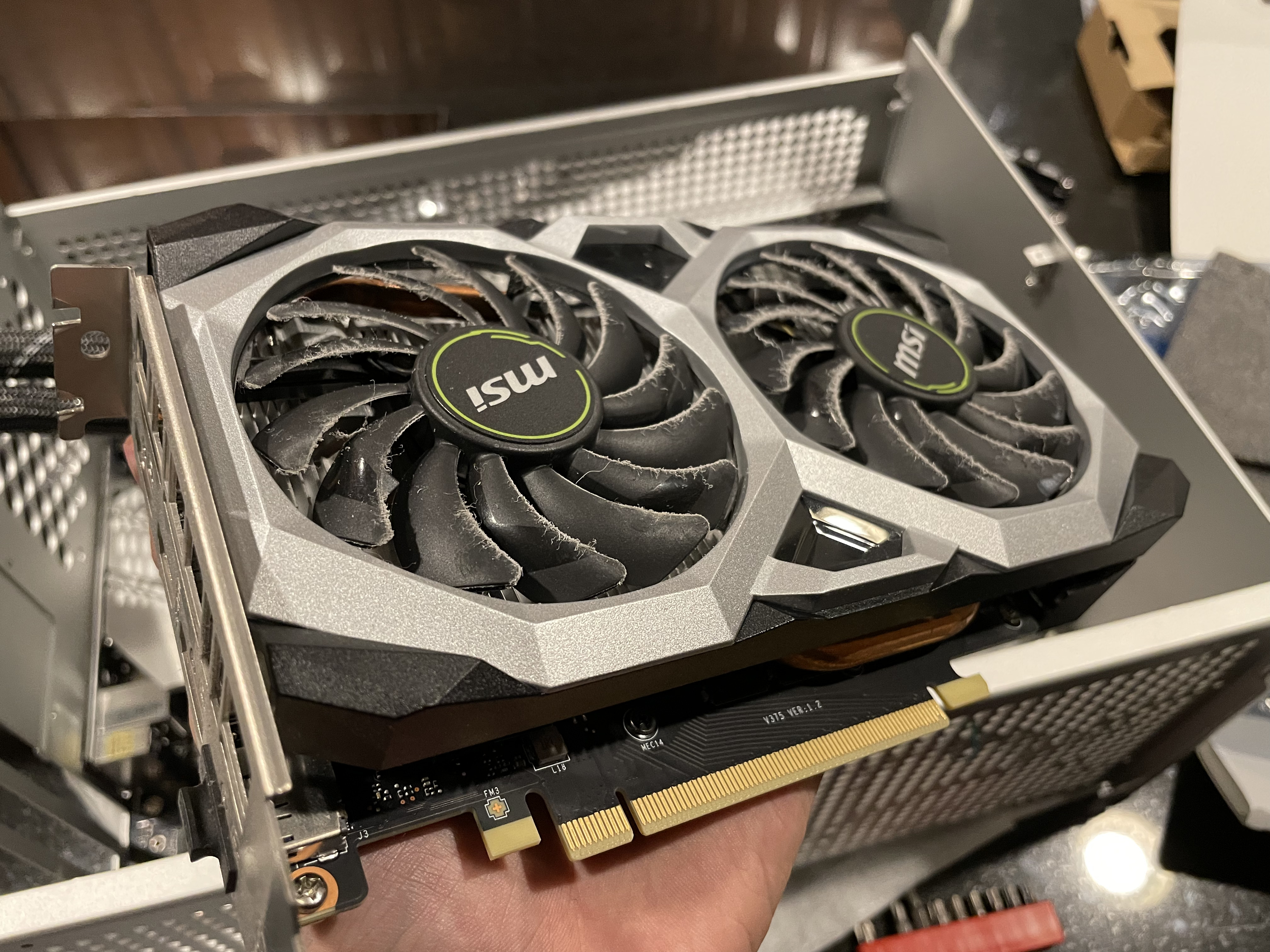

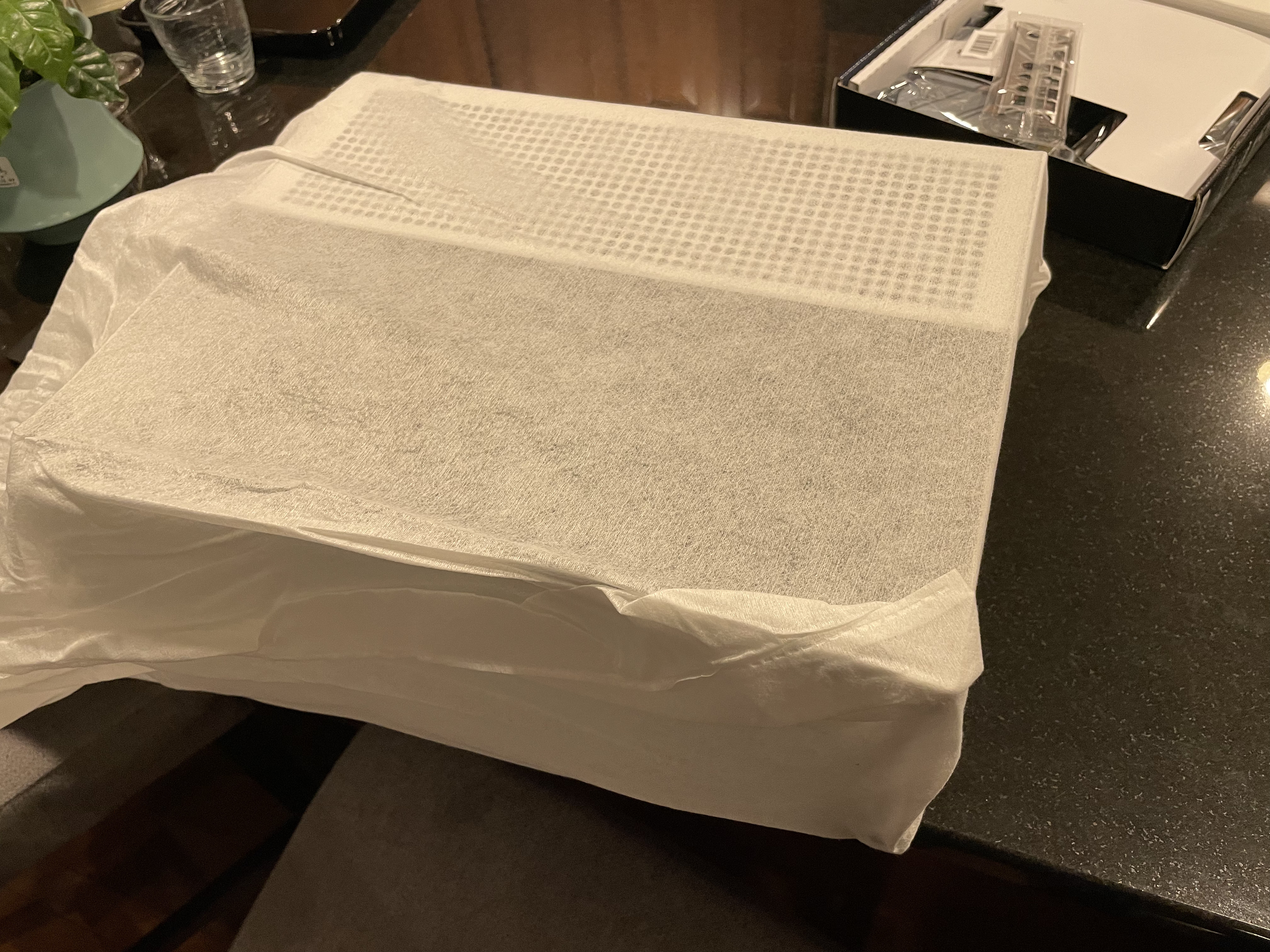

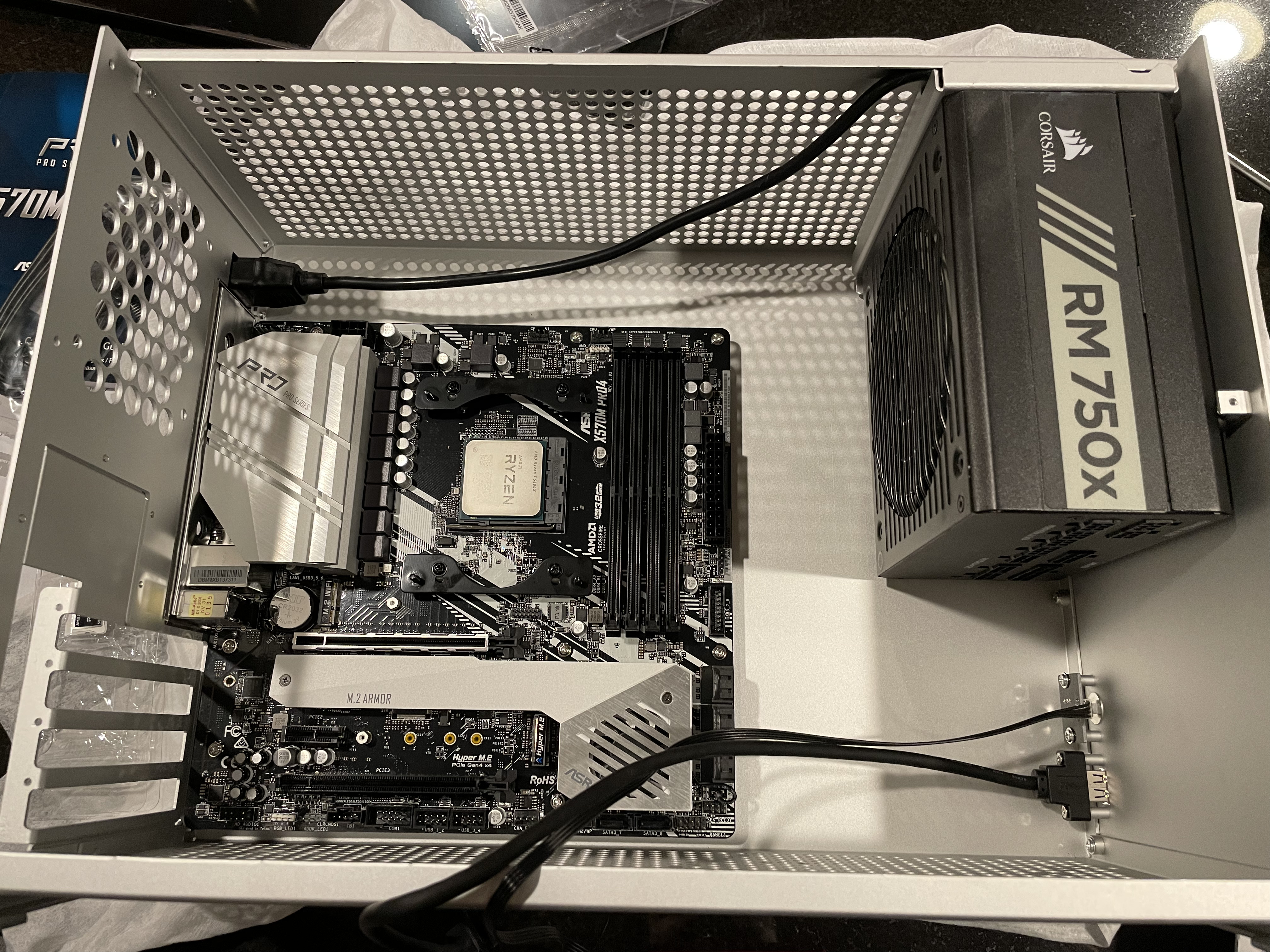

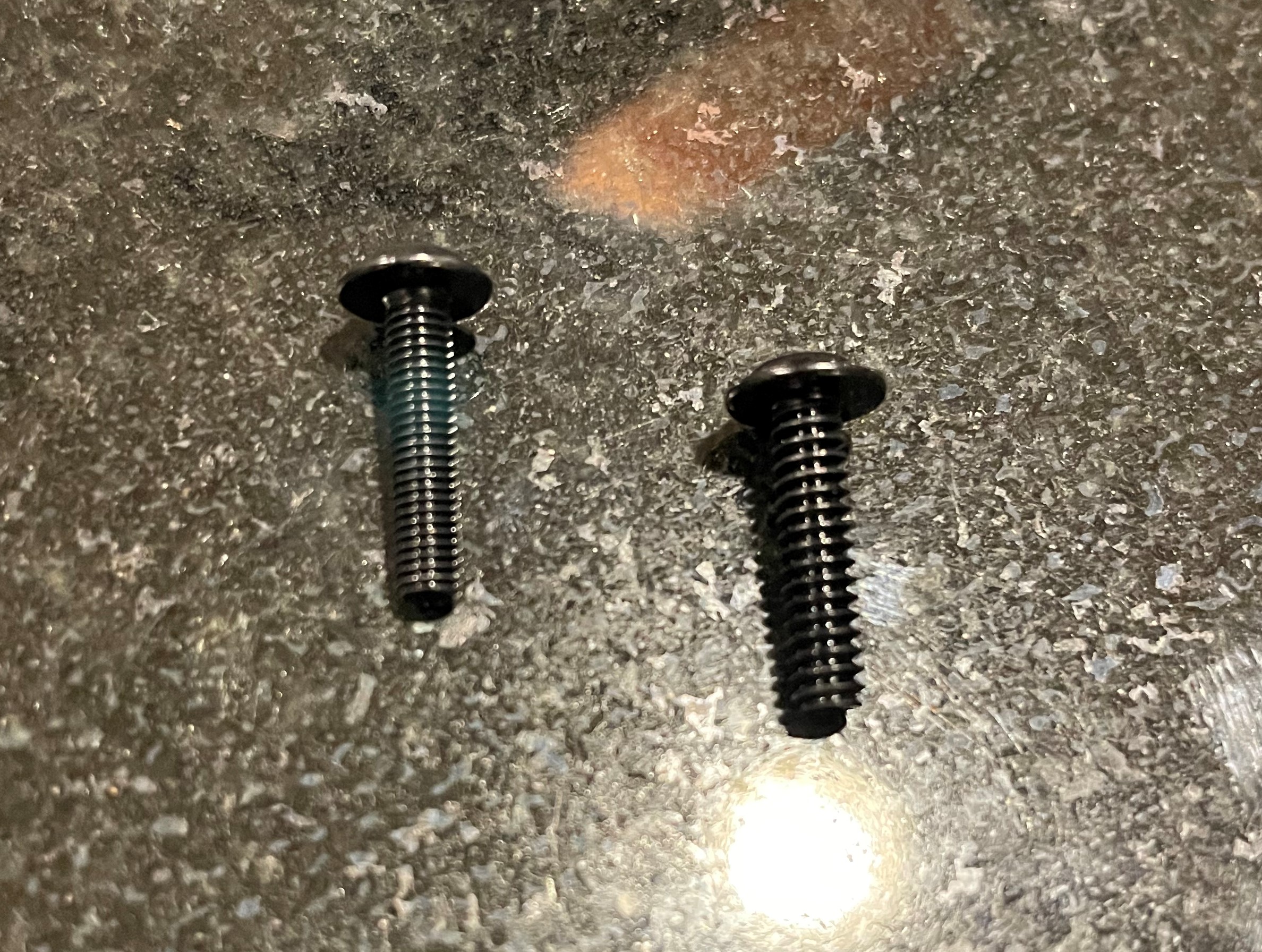

The case came nicely wrapped. There were not a lot of instructions on how to put the case and system together, you kind of just had to know. That took a bit of trial and error. There are a few screws that are very similar sizes, and not labeled. The whole setup went smoothly after that except that getting the cooler to fit in the case was a bit of a challenge, and the motherboard… So, the motherboard… I got a AsRock X570 Pro4 motherboard, it had all the features I wanted. I get the case put together, I installed my previous power supply, I kept the RAM and graphics card, moved my SSD over (I had a PCIe Gen 4 Samsung 980 Pro on order, but it hadn’t come in yet), put thermal paste on the CPU, install the cooler AND… nothing. System will not boot.

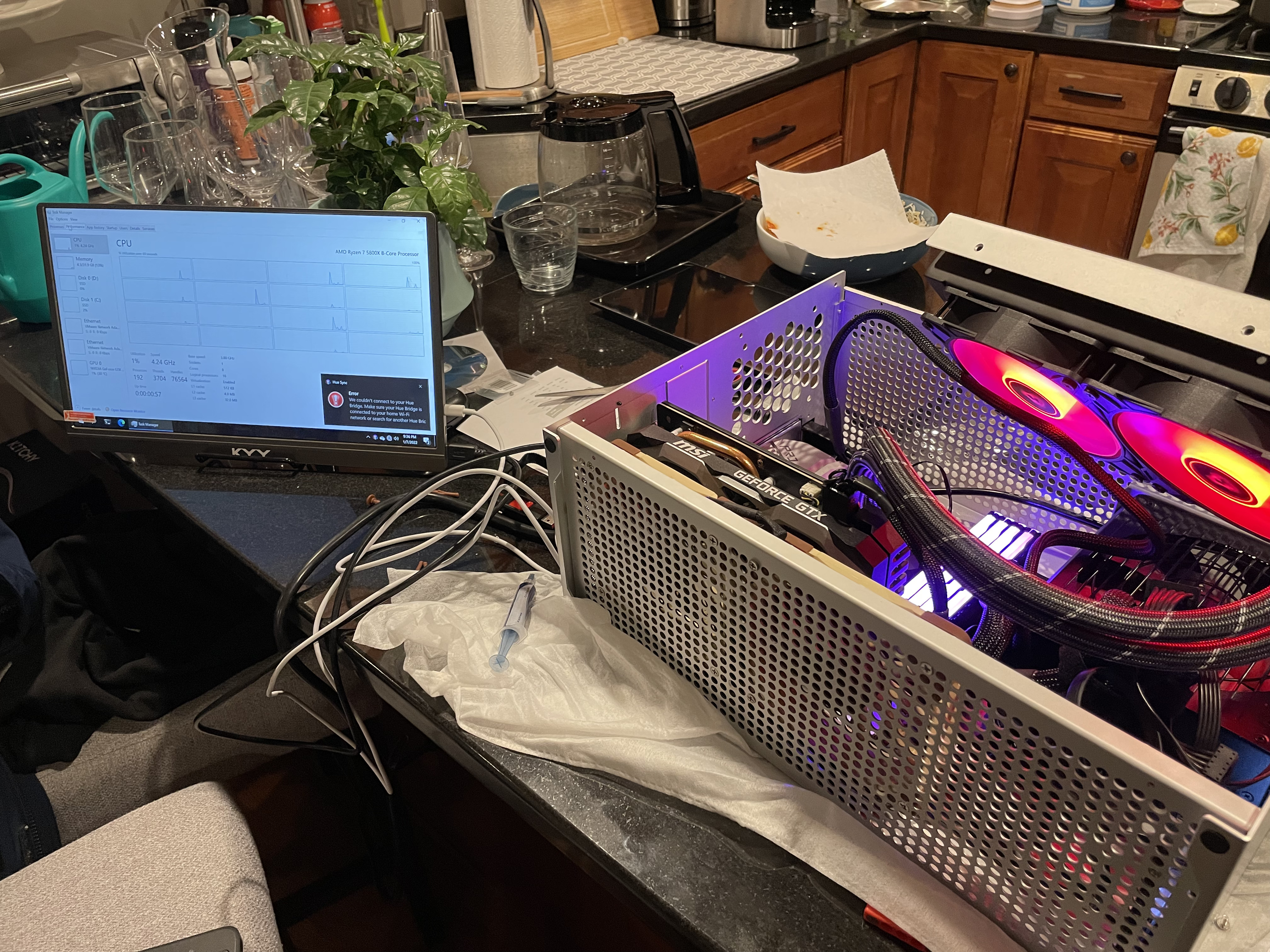

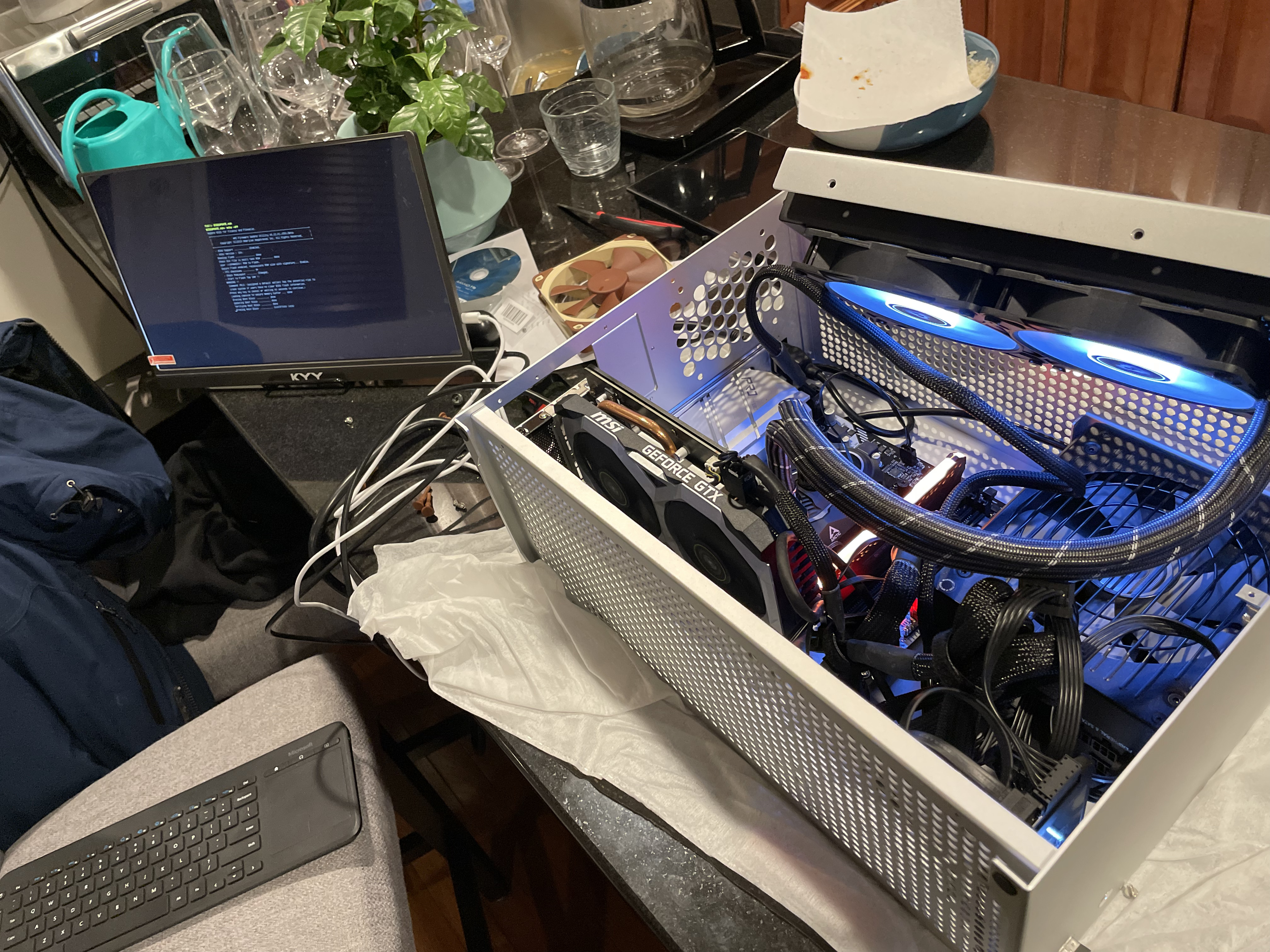

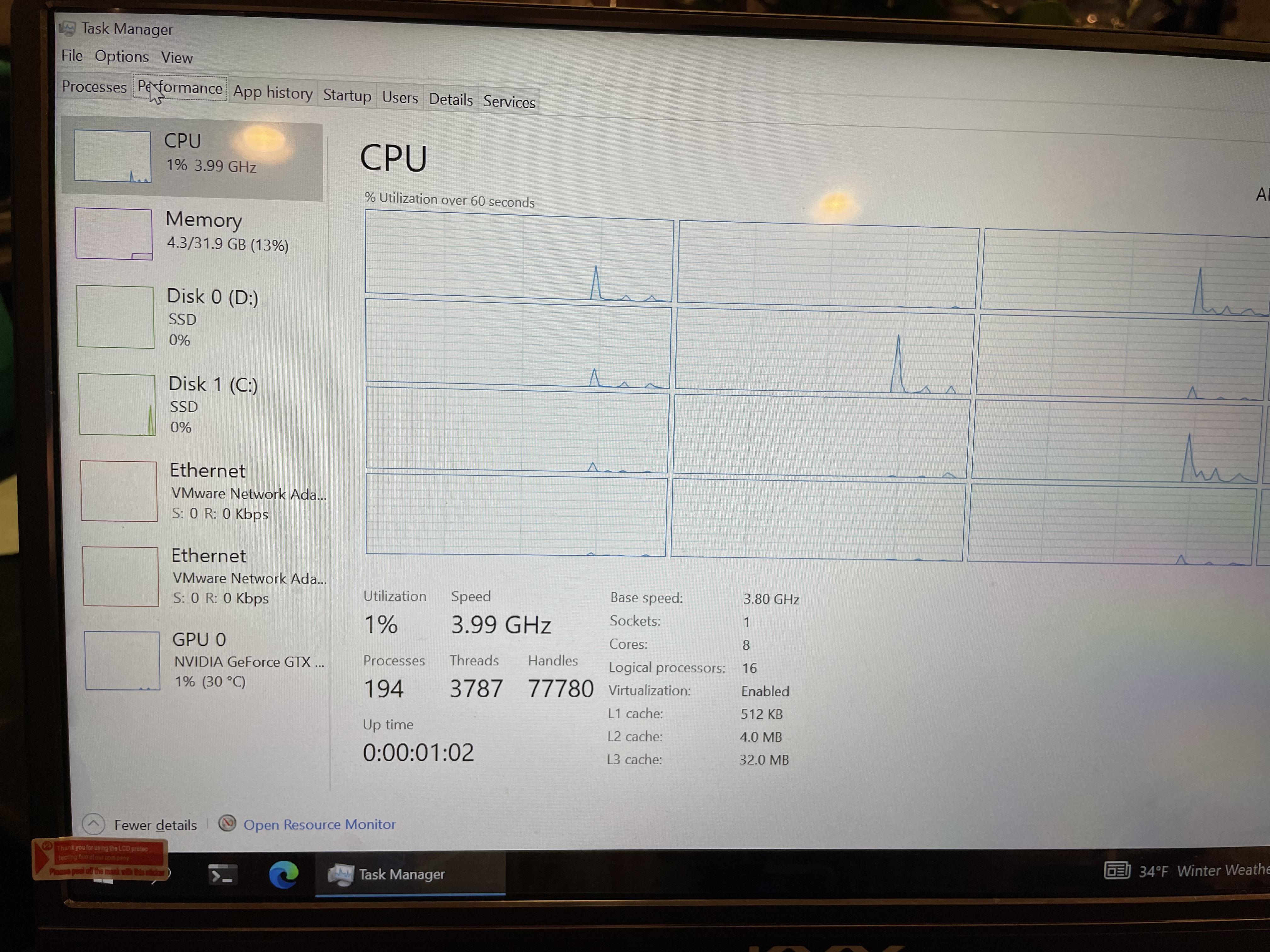

There are lights on the motherboard saying CPU, RAM, and DISK failed. I start searching online and trying different things. A bit in, someone says “make sure your motherboard is updated to support 5000 series AMD”. I just got this board, its fairly new, it has to work right? Well turns out you need BIOS version 3.20 to support the CPU I have, AsRock is at 4.20 for this motherboard. After taking my old 2600X out of my old motherboard, taking out the new CPU, cleaning the thermal paste, reseating, re-thermal pasting the 2600X, turns out the board shipped with version 3.10… One revision before what I needed. I updated the BIOS, then swapped the CPU back, doing all those steps again. This time, the system worked.

I later got the Samsung 980 Pro SSD, which was a tiny bit of a headache to migrate over because I had Bitlocker on and trying to relocate the bootloader was not straight forward. I kept getting “Boot Device Not Found” and eventually somehow doing a system restore to before the last Windows Update got Windows 10 to reinstall the bootloader on the drive. I have no idea why that would have fixed it. I had disabled Bitlocker before starting this ordeal, but that just does it one reboot, I really needed to just fully disable it to save me typing in the recovery pin many times.

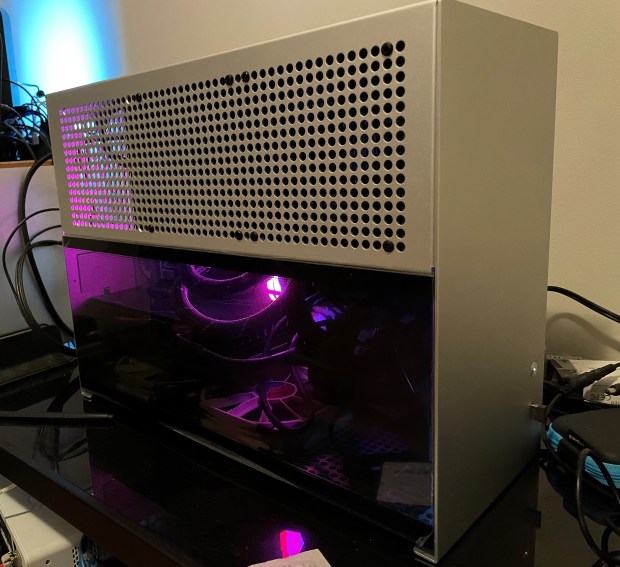

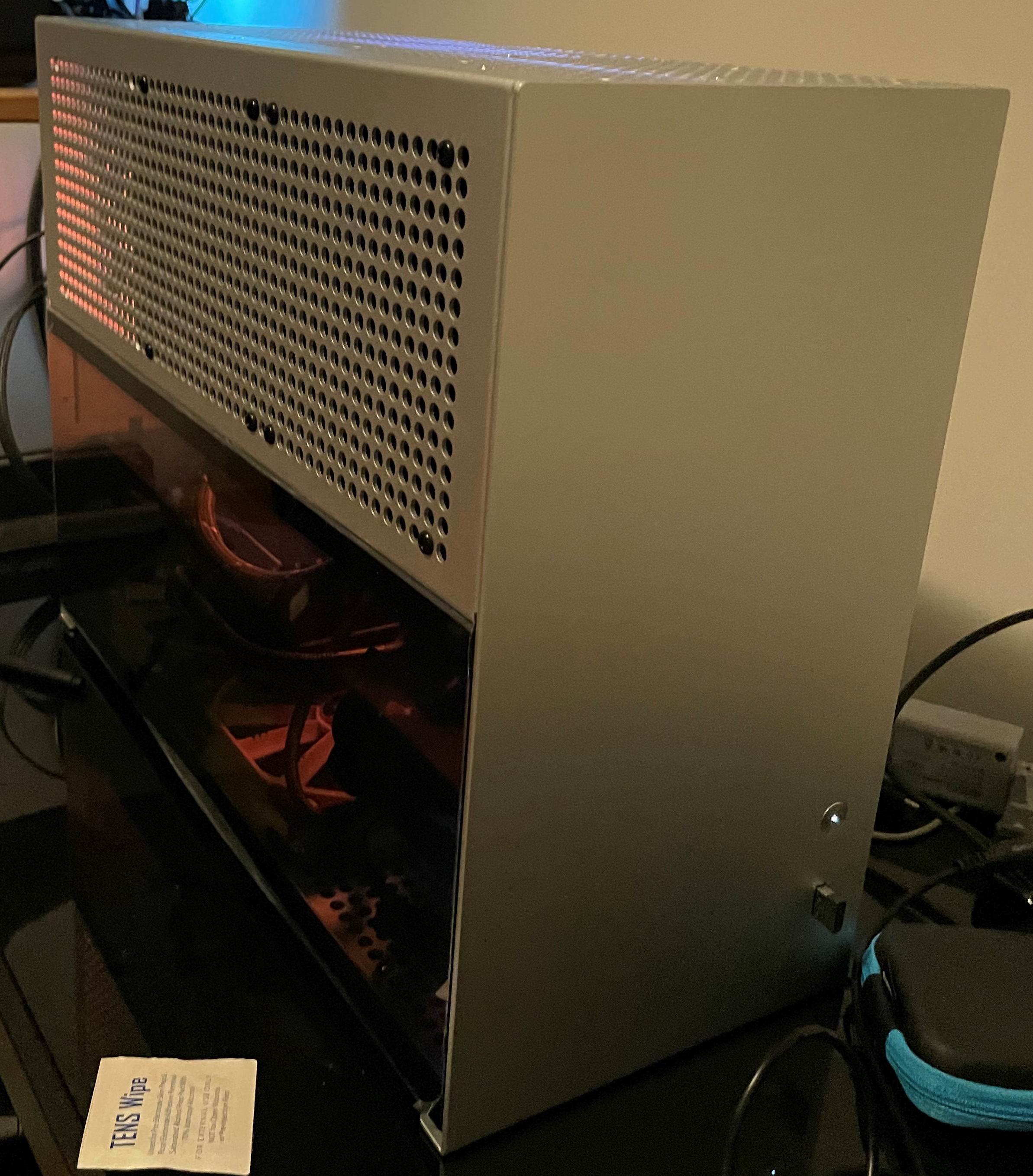

The system is working well. The only remaining issue, that is very odd, but I am just living with is whenever the system attempts to do a restart, it freezes before coming back. It properly shuts down, and if I hold the power button and then turn it back on everything is fine. But it refuses to gracefully restart. It also will fully shutdown fine. Odd…
