Dell Optiplex 5050 Micro Windows Server Installation

Recently I was able to pick up some Dell Optiplex 5050 Micros for $60 on eBay. These are tiny machines, with an Intel i5-7500T (4 core/4 Thread) CPU, 8GB of ram, and a 256GB SSD. For $60 they needed a power supply, but those are easy to come by. My plan was to replace my aging Intel NUC that is the core domain services for the house (AD, Radius, CA) and perhaps the aging firewall, if I can figure out how to get a second NIC into the system, more on that later.

My philosophy when running a standalone network (even with internet access) is to have at least 1 of your Domain Controllers (DCs) be a physical box at all times. An alternative is a dedicated hypervisor with local disks, but anyone who has tried to start a VM manually on VMWare knows how painful it can be without any interface to the system other than the command line. In addition, these days it’s easy to make all the DCs virtual, but if you ever have to cold boot your environment; then you run into not having DNS. Following not having DNS, things like vCenter and vSAN can’t come up cleanly, and there are more and more chain on effects. Having a physical machine allows you to bring DNS and core services up first, then start all other services that rely on your domain.

The first task I had was to get one of the Optiplex 5050s ready for Windows Server. I started with upgrading the ram to 16GB, because I had it laying around. After that, since this is an eBay purchase, I updated the firmware/BIOS and ran diagnostics before it touched the home network. The seller was nice enough to install Windows 10 Pro on the machine, which has a license in the BIOS; but I formatted the drive before starting that instance. People are generally nice, but who knows what was in that image. After getting Windows Server 2022 installed I hit my first issue. Server 2022 does not have a driver for the Intel i219-V that is in this chassis.

I tried getting the drivers from the Dell site, but Windows refused to use them because they were for Windows 10, and not Server edition. My current fix for this was going to select the driver, telling it to “Browse my computer for drivers”, letting me pick, then manually selecting the “Intel” “Intel(R) Ethernet Connection (2) I219-V” driver. I had a USB ethernet dongle that worked for me to get online and at least be able to see that driver. Now the box is happily online. The main issue with this technique is that I keep getting an “Optional” Windows Update for an updated driver that seems to never install. I think that is because I installed the Dell driver, but it never runs correctly.

Another thing I try to do with most systems, especially the systems in charge of security is get Virtualization Based Security running. This is a newer Windows feature, where core elements that need to maintain secrets are run in tiny Hyper-V containers. The user never sees it, but this gives added protection to the system. If you run “msinfo32”, you can get an output of its status. Most of the time, you need to enable chipset virtualization support; then add the system feature of “Host Guardian Hyper-V Support”. On older systems (Windows Server 2019) and desktops, I think it’s just called “Hyper-V”, then you get these features enabled.

On paper this machine is 78% faster than the Intel i5-3427U, and that makes a world of difference. The old system took a while to boot, and a while to backup, which is what spurred me to upgrade. This system feels amazingly fast for a $60 system. Keep in mind that it cost less than the Raspberry Pi 4, has Intel, and didn’t have to wait the years Raspberry Pis take right now!

I have the main DC run domain services, DNS, Network Policy Service (RADIUS), and certificate services. For the first two, I just had to install Domain Services and DNS and the system started acting in that role. For NPS I exported the config from the old DC, and then installed the service and imported onto the new one. As a reminder, Domain Services has to be installed first, or if you have NPS/Certificate Services installed, then try to do Domain Services, it will tell you it can’t install. Certificate Services, I added a new CA, stopped the old one’s service, and removed it as an enrollment agent in ADSI. My 802.1x and other certs given out by GPO are short lived, around 90 days; I will wait for the old ones to expire and systems to naturally get newer certs.

The second system I got; I thought I would try to do some hardware hacking. My hope was to repurpose it as a firewall for my aging Dell Optiplex 990 from 2011. To do this I would want to add at least 1 more NIC to the system. I ordered a 1gb ethernet NIC that goes where the WLAN chip goes. At first it did not show up in Linux and I was worried. Turns out the system bios had “wlan” disabled, and by enabling that, it turned on that PCIe channel. Then the card would show up. Having mounted the ethernet port in the extra serial blank this system has did make it look very clean and easy. I had to tuck the wire away as it came from the front of the unit to the back and had the sata drive siting on it. After playing with it a good amount, removing the card, reseating, putting electrical tape under it, I was able to get the line up, but not reliably at 1gb/s, it tended to go down to 100mb/s a lot in coming up. While things like loosening the screw holding it down, and putting electrical tape under it helped, the system was not reliable enough for me to feel comfortable using it for homelab-production. I shaved down the connectors at the end of the card, with them being that large, the screw couldn’t easily get between them. That did not help that much.

In the end I am enjoying the one system as a new DC. And eventually will figure out what I want to do with the other one. With having a NVMe slot, and SATA internally, in addition to being able to go up to 32GB of ram on a low power budget they are very capable little machines.

Converting .heic on Windows With Open Source Tools and a Context Menu Shortcut

While taking photos and uploading them places, like this blog, I get the photos in .heic format from the iPhone, then need to convert them into JPEG for WordPress. There are a few paid, and some questionable freeware out there to do it, but I wanted to use open source tools. ImageMagick is an open source tool that can do the conversion, but that requires the command line, so I found the registry keys needed to add a right click context menu to convert the images!

This context menu only shows up when selecting a .heic file as well, which is a nice way to do it. How to install:

  • Install ImageMagick (link), the version I got was “ImageMagick-7.0.11-4-Q16-HDRI-x64-dll.exe”
  • Copy the following lines into a text document
Windows Registry Editor Version 5.00

[HKEY_CLASSES_ROOT\SystemFileAssociations\.heic\Shell\convertojpeg]
@="Convert To JPEG"

[HKEY_CLASSES_ROOT\SystemFileAssociations\.heic\Shell\convertojpeg\command]
@="\"C:\\Windows\\System32\\cmd.exe\" /C magick.exe mogrify -verbose -format jpg \"%1\""

  • Name it install_imagemagick.reg (or really anything.reg)
  • Open that file in file explorer

After install you should be able to right click a .heic photo and “Convert To JPEG”. I did not need to restart/logout/restart explorer. I am calling cmd.exe first instead of the program directly, because this allows you to easily update ImageMagick and not need to directly link to the file.

Updated Windows Sudo

Recently I updated my Windows sudo program and added a command for Super Conduit, this is what I call some tweaks that you can make to a Windows Vista+ system. This allows someone to copy sudo.exe to a systems, system32 folder; then after running “sudo cmd” you can run “sudo /write” so add ls, ifconfig, and superc as a option in the command line.

Superc has options of enable, disable, and show. Making it easy to run. ūüôā

Newest build is always here https://github.com/daberkow/win_sudo/raw/master/sudo/sudo/bin/Release/sudo.exe

Super Conduit

Due to the high latency of the lines between my works offices, file transfers can be slow. There are settings in Windows Vista+ systems that can allow the TCP window to grow, and allow much higher utilization on these lines. I call it Super Conduit. This may be possible on *nix systems, but the way this tweak works is that it tells the other side it will be doing this tweak. That means that both sides have to be at least Windows Vista Kernel, (Server 2008 works) that also means that linux file servers will not work because them seem to be linux machines with SMB. This should be done over wired connections, because the packet loss on wireless hurts these connections more than anything else.

With the “autotuninglevel” change, I have seen speed changes from a 1megabit a second line go to 150-200 megabits a second.

WARNING: Windows Vista/7 IP stack can not handle changing this setting and using normal connections, meaning once this is done usually the internet stops working until the setting is reversed. Windows 8+ seems to have no problems with this setting, and the internet; it just makes Win 8/8.1 more awesome than it already is, which is pretty awesome.

  1. Login under a administrator account to the Windows machine
  2. Open ‘cmd’ as a administrator
    1. Title bar should be “Administrator: C:\Windows\System32\cmd.exe”

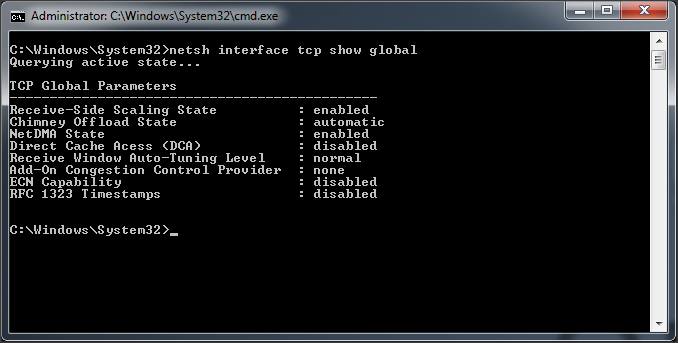

  3. “netsh interface tcp show global” will show the current settings of your machine
    1. Command Line Status

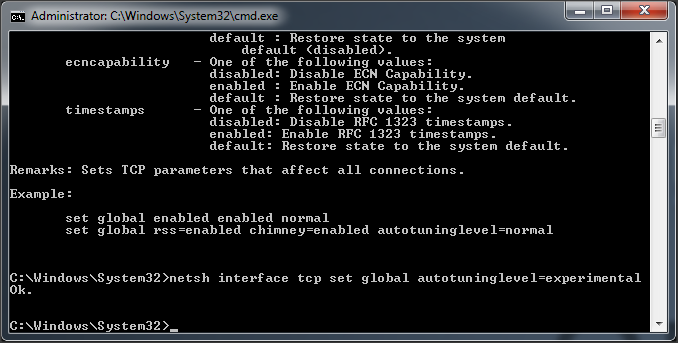

  4. “netsh interface tcp set global autotuninglevel=experimental” enables the majority of what you need for faster transfers, all you will get back in response is “Ok.”
    1. Image2

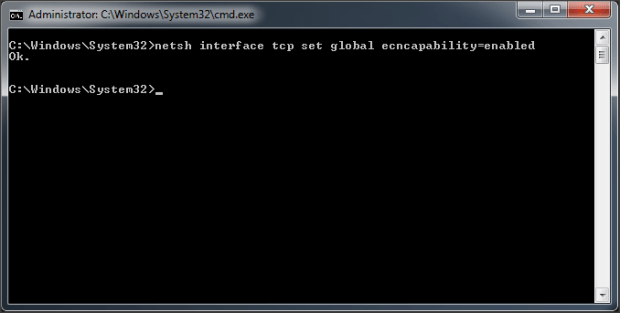

  5. Another setting I have used in the past is “netsh interface tcp set global ecncapability=enabled” this adds a flag to the packs that tells routers “I dont care if I get slowed down, please dont drop me completely”. The problem you run into with large TCP windowing is one dropped lowers the TCP window size a lot and slows the connection making it a lot more spiky. This command doesnt always help, but setting it hasnt hurt in the past.
    1. Image3
  6. The “rss” receive-side scaling state should be set to enabled, that should be the default. This allows the receiver to do these types of conenctions.
  7. When you are done your transfer just run¬†“netsh interface tcp set global autotuninglevel=normal”



Troubleshooting Notes:

Windows 7 seems to act oddly when starting to use this setting, so I would enable it then restart the machine. I believe that cached sessions already in progress do not take the new setting.



YAY MATH:

http://bradhedlund.com/2008/12/19/how-to-calculate-tcp-throughput-for-long-distance-links/

Default window size: 65536 bytes * 8 = 524288 bits

73ms latency between cross country offices, 524288 bits / 0.073 seconds = 7,182,027 Bits throughput, theoretically. 897,753 B/s, max.

This setting increases that window size to something larger, much larger, and thus gives better speeds. The only interesting downside is that since the TCP window is big, if a packet is then lost, TCP resizes the window to a much smaller setting; forcing the window to climb again.

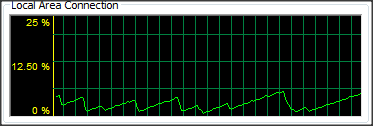

That is a 1GB link going across the country.

That is a 1GB link going across the country.

Java Windows Shortcut Library (Parsing and Creating!)

Recently I have been working on a project that involves extracting a bunch of files from zips. The problem I faced was all the shortcuts within the zips were hard coded to locations, making it impossible for me to move the extracted zip data to wherever I may want. I wanted a native library that could read and modify Windows Shortcuts so I could drop my zip data anywhere; my project is in Java, and its instant cross compatibility was needed. I know all my clients have Java installed, so that made its dependency not a issue. After looking around on the internet and finding several options, including the popular¬†https://github.com/jimmc/jshortcut. Now the downside the this popular jShortcut library is you need a DLL, why you need a DLL to write a binary file, I am not sure. More specifically, you need a DLL for your PCs instruction set, ick! After searching the far reaches of github, and getting to the end of my rope I found¬†https://github.com/kactech/jshortcut, written 5 years ago, and not really popular on github I thought I would give it a try. IT’S AMAZING! With no dependencies, and just a single include, you can write, modify, and create new Windows Shortcuts! There is example code included, and it couldn’t be easier to use. I just wanted to make sure anyone who has had the same problem knows about this great library.

WQL, SQL Queries for Windows Backend (Part 1)

If you have been writing web apps for a while, or other apps you more than likely have used SQL. SQL allows you to query a database and interact with your applications data. Instead of trying to find a users profile, what if we wanted to find out what a user was printing on their local machine? If there was an easy interface for that, it could make programming for a platform like Windows a lot easier. Well Microsoft years ago added this ability to Windows; the technology is called WQL. This was added with the other components of WMI (Windows Management Instrumentation) at Windows ME. For Windows 9x and NT you can download the WMI core. This article will be a brief over view of what it can do and how you can play around with it.

First like when we looked at LDAP, we want a tool that will let us quickly play around with what is available, and then code that into our application. The tool I use is WMI Explorer,¬†http://www.ks-soft.net/hostmon.eng/wmi/, it provides a easy interface to look at all the data available. With the WMI core it works with everything back to Windows 95! You can download and run the program for free, no installation required. Once open, there is a upper portion of the window that lists all the spaces you can access, these would be the ‘tables’ in SQL. Depending on your version of Windows, there will be separate options available. I have used this interface before for network cards (6to4 Cleaner) and printers.

WMI Explorer

WMI Explorer

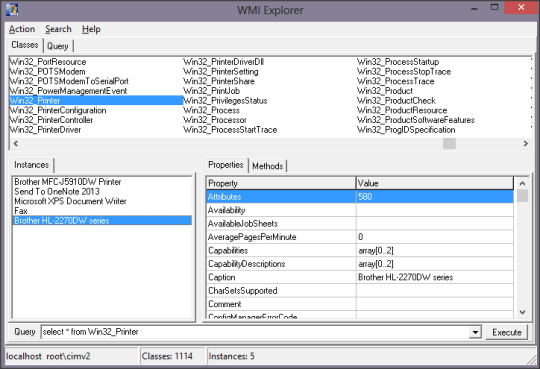

For this example I will go over to the Win32 framework and access the Win32_Printer ‘table’. I get a list of printers the machine has installed, as well as attributes to each of these printers. Any¬†administrator, or any program attempting to manager printers (I say attempting because printers can he a horrible experience) information – like what port the printer is using – is here, in addition what type of connection this machine has to the printer. At the bottom of the Window there is a Query that is building as you select different fields. This query can be moved into a application later to get the same data in code. WMI Explorer also allows for a user to write Queries directly without this interface; that is the second tab at the top of the window.

One downside I have found in using WMI is the setup process time, in C#/.NET using WMI is easy, but it takes time to start accepting queries. About a year or two ago I was working on querying network card information on Windows Vista. The first call could take a few seconds to respond, after that first call it would speed up, this is just something that has to be accounted for in the applications design. I found running WQL queries in a separate process, and starting them as soon as possible would allow the process to finish before the user needed the data.

I just wanted to get everyone started looking at what is available, in a later article I will go into more depth about programming with this and how you can interact with this data in a C#/.NET program.

LDAP Authentication RPI Tutorial (Part 1)

After writing about how to use CAS with PHP, I thought I would write a post about how to use LDAP(Lightweight Directory Access Protocol) at RPI but these methods can be used anywhere. LDAP is a protocol to query user databases, this is a protocol that can be sed along with Active Directory, or another directory system for computers and user accounts. This protocol is widely used to allow different applications to interact with your user database. Here I will be showing how to implement search with LDAP to a web application. This guide will be using LDAP with PHP, this requires the LDAP module to be enabled within PHP; that will be the purpose of this article, then the next one will discuss how to actually query LDAP.

LDAP Linux (Debian/Ubuntu) Install

Linux is easy to get LDAP working with PHP, as long as you have a standard installation of Apache, with PHP 5 working.

  1. Install the LDAP module onto the machine, using either aptitude or apt-get
    • “sudo aptitude install php5-ldap”
    • OR “sudo apt-get install php5-ldap”
  2. PHP should now be able to use LDAP, if it is not working yet, you will need to restart Apache.
    • “sudo service apache2 restart”

LDAP Windows (XAMPP) Install

Xampp for Windows comes with LDAP, but there is a bug in their implementation and a file needs to be copied before LDAP will work. I am going to use “C:\xampp”, the default directory for Xampp in this example.

  1. Go into the PHP folder, C:\xampp\php\
  2. Edit the file “php.ini” with any text editor
  3. Find the line “;extension=php_ldap.dll”, and remove the semi-colon. “extension=php_ldap.dll”
  4. Now if you were to reboot Apache it should be working, but its not! Why not? There is a missing DLL. You need to
    copy libsasl.dll from c:\xampp\php\libsasl.dll to C:\xampp\apache\bin\.
  5. Now restart Apache

LDAP Search

Now that PHP can search LDAP we are going to want to start creating queries in PHP; but it is much easier to tweak the search in the command line, and then put that query into PHP. The following are steps that can be taken on a Linux computer (again Ubuntu/Debian) to install and use a ldap command line search.

  1. First we need to install the OpenLDAP utilities that will give us the “ldapsearch” command
    • “sudo aptitude install openldap-utils”
    • OR “sudo apt-get install openldap-utils”
  2. Now we are making our query
    • First we add the command, then enter the host you are searching, tell the server to try simple¬†anonymous¬†authentication.¬†Next give the server a base to start the search (I am using RPI specific domain components), finally we have to give the heart of our search. I am looking for any Unique ID (username) that starts with “berk”, and ends with anything “*”.
    • ldapsearch -h “ldap.rpi.edu” -x -b “dc=rpi, dc=edu” “uid=berk*”
    • Now this gives one result, and this can be used to see what data will be returned from this server. You can also try “ldap1.server.rpi.edu” this returns a entirely different list of¬†variables, and sometimes more users.
    • If you are interested in researching this command more, die.net has a great¬†resource.¬†http://linux.die.net/man/1/ldapsearch
    • Troubleshooting: For those of you here at RPI trying to follow this guide specifically, if you¬†do not¬†get any results or a error connecting, RPI firewalls the LDAP servers heavily. I have found a lot of the time I have to be in the VCC to make this work, you can also VPN in, then your network connection is within the VCC and it will work. I have VPNed in, while on campus in the Union to get LDAP to work.

UPDATE: I added a little about what LDAP is

Recovering WIM Images

A user came in to helpdesk with a laptop that had a dying hard drive. A coworker was able to recover part of the LENOVO_RECOVERY partition to a new drive that was installed in the laptop, with a intact .WIM image, yet the partition would not boot. We tried rewriting the MBR, rebuilding BCD and other tricks but nothing would work. To make a very long story of us trying everything to get this drive to restore with no avail; we were able to manually make a partition then use GImageX to recover the image.

The new hard drive had the 10gb recovery partition we had copied over, and nothing else on it. So first using DiskPart, we made our new partition for windows.

  1. Boot from a Windows Vista, or 7, or later installation disc
  2. Go to Recovery Mode, and then get to the command prompt (dont do a system restore)
  3. Run diskpart
  4. “list disk” and then “select disk #” for the disk you want
  5. “list partition” will list what is on the hard drive, we then did “add” to make a new partition
  6. “select partition #” will select the new partition if you put the correct number in
  7. Finally “assign” will give the new drive a drive letter

Now that the new partition exists, we used¬†http://www.autoitscript.com/site/autoit-tools/gimagex/. This tool will recover the standard WIM windows images to a partition. To make life easy we copied it to a thumb drive and then launched it on the recovery disc. If your windows disc is 64 bit, you will need the 64 bit version of the app. Once we had the app it was just a matter of launching it and going to the second tab of “Apply” to install the image. The laptop we were working on had the recovery image hidden, in a folder called “FactoryRecovery”. By running “dir /AHS” the¬†computer¬†will list all files in a directory, including hidden and system files. While navigated to the directory you know the images are in, running “attrib -S -H /S /D” will remove system and hidden attributes from the files and folders. Now GImageX can see the image and recover it.

That was the end of a long recovery, if anyone has questions post a comment.

Windows Sudo

I am back at RPI, finishing up my degree. Recently I have been working on hour tracking software for several departments at RPI.

Recently I have run into a minor annoyance where I am in the command line in Windows and need to elevate a command or program so that I can do a administrative task. (Such as moving a file to the system32 folder), the normal solution is to right click command line short cut and “Run as Administrator”. While that works its not fast,¬†I’m¬†sure there are other solutions out there, but I wanted to quickly build on in .Net. I did this a while ago for Vista and called it elev, but never saved it and since I am trying to make the transition between Windows and Linux easier I called it sudo.

All you do is put this in your %windir%\system32\ folder, and then at the command line type “sudo cmd” or whatever¬†command¬†you want. Commands like “dir” are actually part of cmd not a¬†separate¬†file called so “sudo dir” wont show anything, it will output the .Net error.

Link to exe: https://github.com/daberkow/win_sudo/blob/master/sudo/sudo/bin/Release/sudo.exe

Link to project: https://github.com/daberkow/win_sudo

OpenAFS @RPI Client

Recently I was told ‚ÄúI can‚Äôt remember anyone getting OpenAFS to work on their own‚ÄĚ, by a staffer at my school. I took it on myself then to figure out how to get this working for students. And in the end I wrote an app that will automatically download and install the AFS client, then configure drives for you. This was an experiment in threading and using WPF instead of Windows Forms.

First the app goes and downloads the OpenAFS client, if it is a 64 bit machine it grabs the 32 bit tools first then the client. While downloading and installing these things it connects via SSH to a school server to get the location of the user’s home folder as well as verify the credentials given.

Once installation is complete the program runs ‚Äėklog‚Äô, this goes to the AFS server and requests tokens in the cluster using the credentials given earlier. Once we are past the installing point all these actions need to be run on the campus network. When the program starts it tries to ping a couple internal servers, if it can hit more than half of them in under 75 milliseconds then it considers itself on campus; if it thinks it‚Äôs off campus, then it notifies the user. One small problem with the first release is sometimes this system gets confused by vpn taking slightly longer.

Now that we have working token the system recommends drive letters that are not in use as well as AFS spaces to mount including the users folder and ‚Äėdept‚Äô to start. The configure button will activate these drives, they are not set to persistent at this time.

Below is the github link, as well as the direct exe link:

Github: https://github.com/daberkow/RPI_OpenAFS

EXE: https://github.com/daberkow/RPI_OpenAFS/blob/master/OpenAFS%20Installer%20WPF/bin/Release/OpenAFS%20Installer%20WPF.exe
